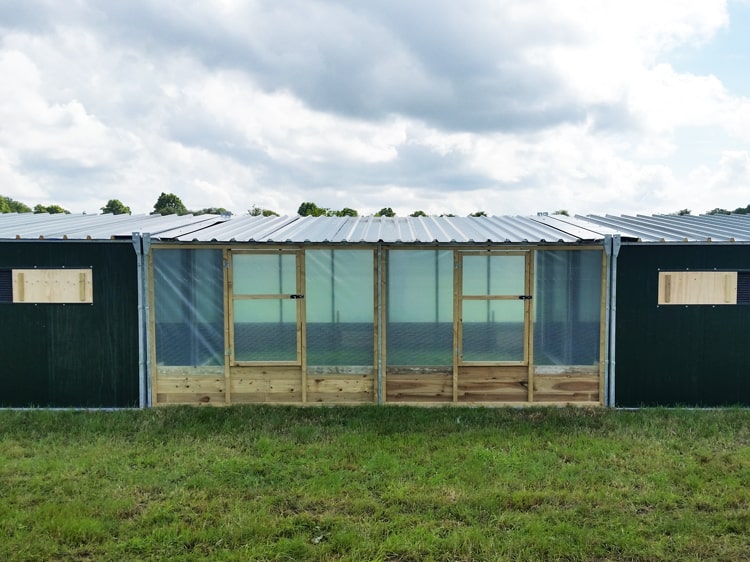

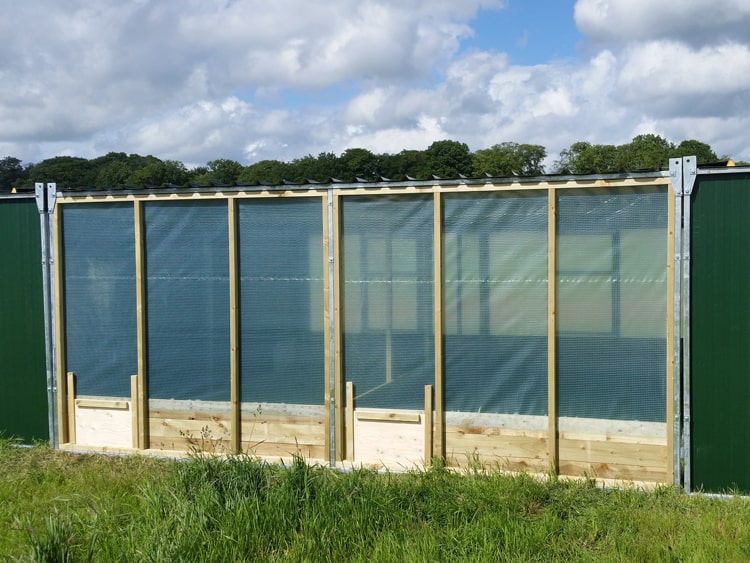

15'x16' Double night shelter
A precision fit for the all-new energy-efficient 15’x24′ Metal2000 rearing shed.
Essential info
15’x16′
2,000 birds
0.12 sq. ft. per bird
Standard features
Designed to seamlessly connect with the 15’x24′ Metal2000 rearing shed, on the end of a row.

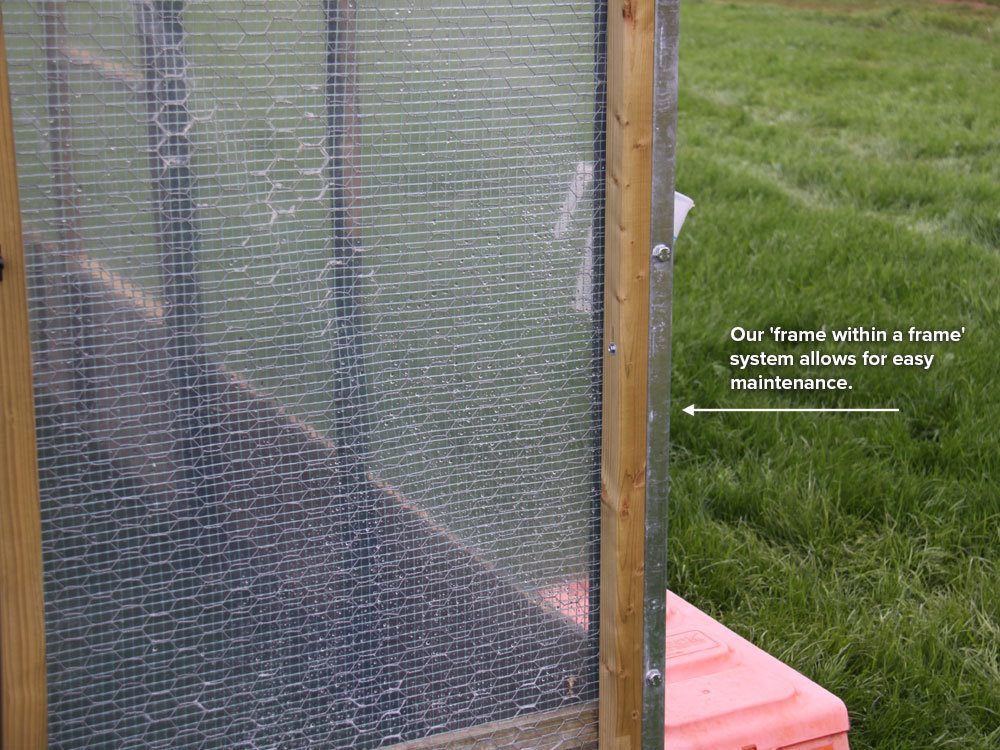

Our metal night shelters are constructed with galvanised steel frames and box profile sheeting for the roof. Inserted into the steel frames are wooden frames, which are clad in either monarflex or galvanised wire (where applicable). This unique ‘double frame’ system combines the durability of box profile galvanised metal with the practical usability of timber. There are two major benefits to this system:
1) It allows for quick and easy maintenance.
2) At the end of the season, the monarflex-clad panels can be removed and stored – to prevent storm damage and increase the longevity of the monarflex.
If required, it is possible to clad the wire or monarflex directly on to the metal frame. Please discuss this when ordering.Sloped roof to enable rainwater to run off the unit and away from bird runs – helping to keep the rearing environment bog-free.
Overall height measures 6ft at the front and 7ft at the back, ensuring there’s plenty of headroom for people to move around in without needing to stoop.
It is recommended that a minimum of two people construct these units.
Full Spec
| Size: | 15’x16′ |
| Total sq. foot: | 240 |
| Rec. no. birds per unit: | 2,000 |
| Sq. ft. per bird (based on rec. no. birds): | 0.12 |
| Cost per sq. foot: | £4.14 |
| Cost per bird (based on rec. no. birds): | £0.49 |
| Construction: | Galvanised steel frame, incorporating our unique ‘double frame’ system to enable easy maintenance (see Standard Features for more information). Clad in monarflex and galvanised wire. No sides on either end, as night shelter is designed to adjoin with the rearing shed. |
| Roof: | Box profile metal sheeting with flashings – Juniper Green. |
| Openings: | Two doors at the front. One pop hole to each side (connecting to the rearing sheds and the runs). |
| Flooring: | N/A |
| Insulation: | N/A |
| Transportable: | Yes, with telehandler. |

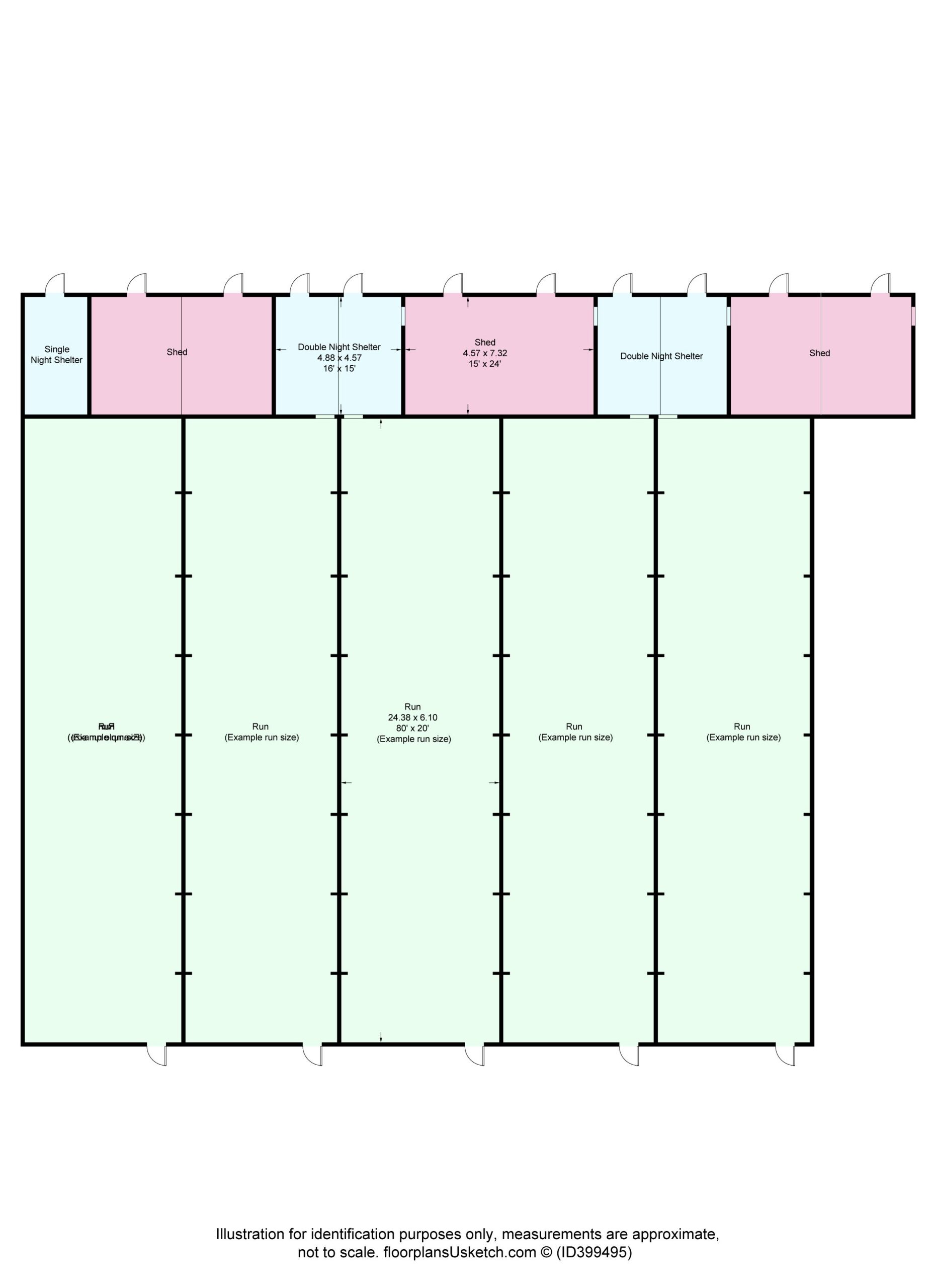

Floor Plan
Delivery
We know how important it is you get your order on time. That’s why we’ll agree a delivery date that works for you from the quote stage onwards, which we’ll stick to.
Print info sheet
Coming soon

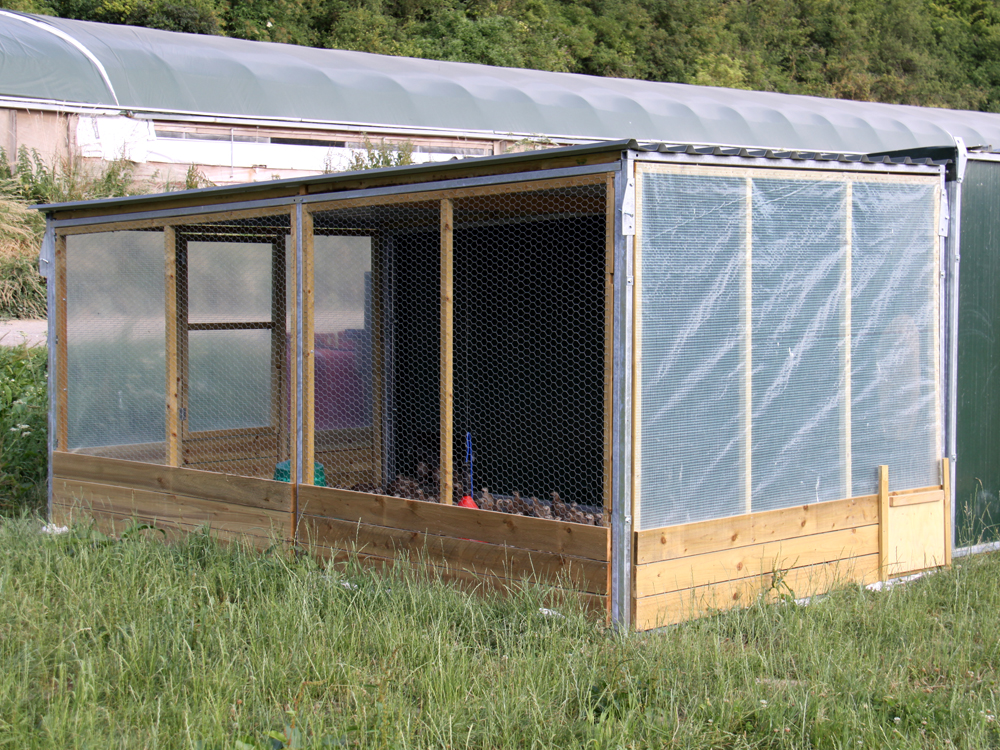

15'x8' Single night shelter
A precision fit for the all-new energy-efficient 15’x24′ Metal2000 rearing shed.
Essential info
1,000 birds
Standard features
Designed to seamlessly connect with the 15’x24′ Metal2000 rearing shed, on the end of a row.
Our metal night shelters are constructed with galvanised steel frames and box profile sheeting for the roof. Inserted into the steel frames are wooden frames, which are clad in either monarflex or galvanised wire (where applicable). This unique ‘double frame’ system combines the durability of box profile galvanised metal with the practical usability of timber. There are two major benefits to this system:
1) It allows for quick and easy maintenance.
2) At the end of the season, the monarflex-clad panels can be removed and stored – to prevent storm damage and increase the longevity of the monarflex.
If required, it is possible to clad the wire or monarflex directly on to the metal frame. Please discuss this when ordering.Sloped roof to enable rainwater to run off the unit and away from bird runs – helping to keep the rearing environment bog-free.
Overall height measures 6ft at the front and 7ft at the back, ensuring there’s plenty of headroom for people to move around in without needing to stoop.
It is recommended that a minimum of two people construct these units.
Full Spec
| Rec. no. birds per unit: | 1,000 |
| Construction: | Galvanised steel frame, incorporating our unique ‘double frame’ system to enable easy maintenance (see Standard Features for more information). Clad in monarflex and galvanised wire. No sides on either end, as night shelter is designed to adjoin with the rearing shed. |
| Roof: | Box profile metal sheeting with flashings – Juniper Green. |
| Openings: | One door at the front. One pop hole connecting to the rearing shed and to the run. |
| Flooring: | N/A |
| Insulation: | N/A |
| Transportable: | Yes, with telehandler. |
Delivery
We know how important it is you get your order on time. That’s why we’ll agree a delivery date that works for you from the quote stage onwards, which we’ll stick to.
You may also like...
Accessories for the 19’x24′ Pukk2000, include partitioning, ventilation, guttering, lifting frame, flooring and floor lining.
Print info sheet
Coming soon
Price options
| Description | Unit Price |
|---|---|
| 15’x16′ Double night shelter | £1,285 |
| 15’x8′ Single night shelter | £895 |
All prices shown exclude VAT and delivery charges.
